13  coord()

coor_flip(); coor_fixed(); coor_polar(); coor_trans()

── Attaching packages ─────────────────────────────────────── tidyverse 1.3.2 ──
✔ ggplot2 3.3.6      ✔ purrr   0.3.5
✔ tibble  3.1.8      ✔ dplyr   1.0.10
✔ tidyr   1.2.1      ✔ stringr 1.4.1
✔ readr   2.1.3      ✔ forcats 0.5.2
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()

13.1 xlim,ylim

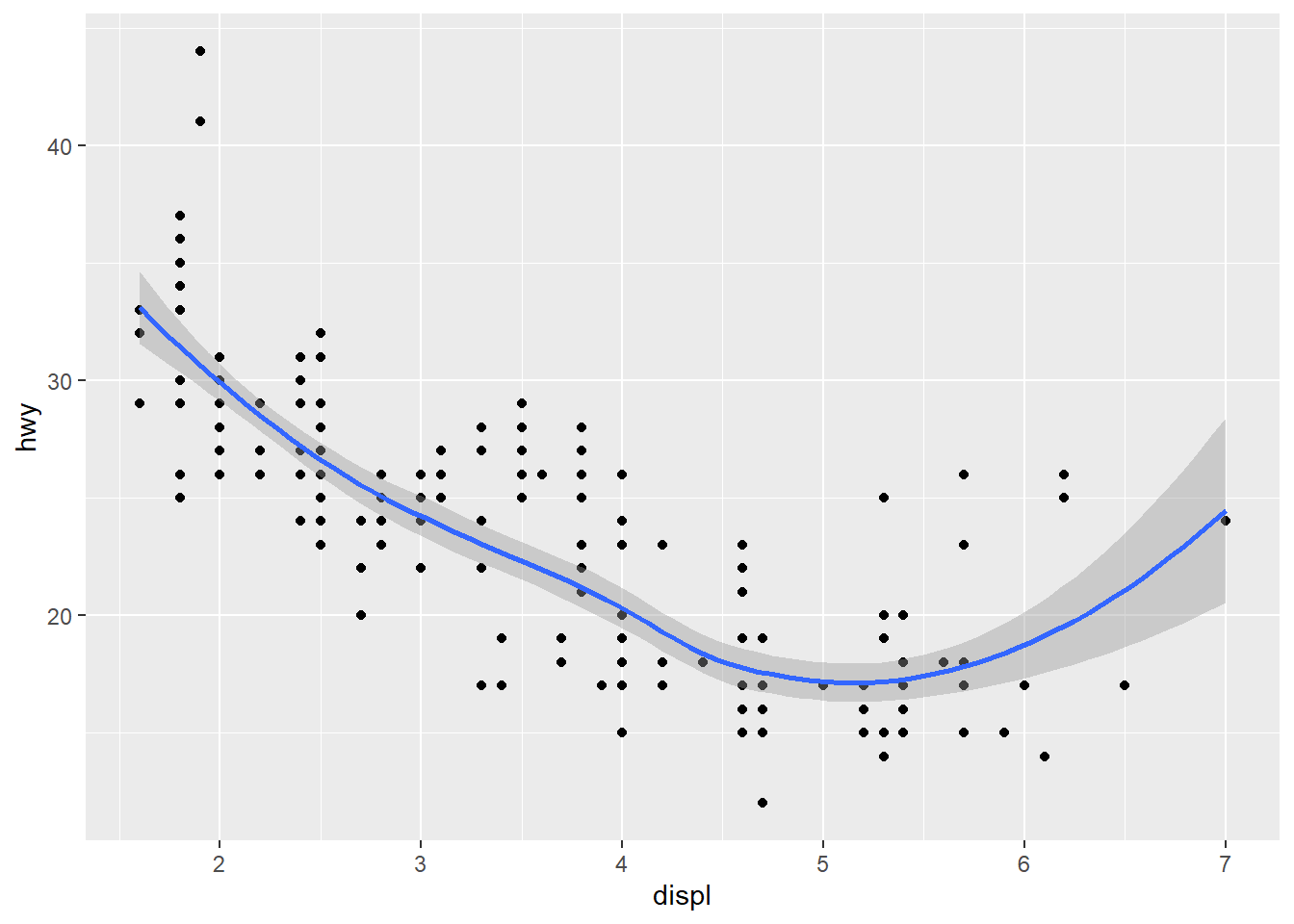

p0<-ggplot(mpg, aes(displ, hwy))+geom_point()+geom_smooth();p0
`geom_smooth()` using method = 'loess' and formula 'y ~ x'

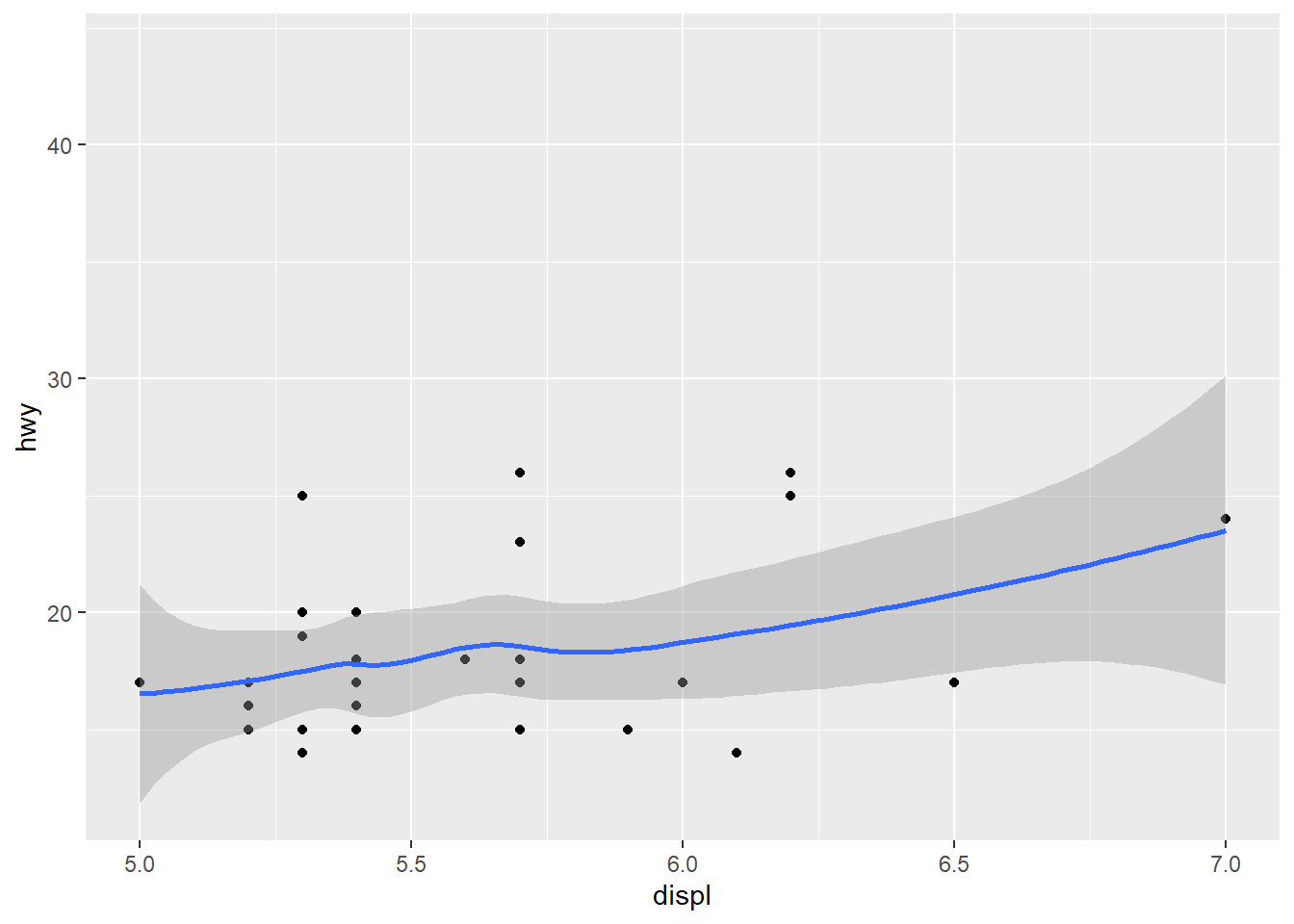

p0+scale_x_continuous(limits = c(5, 7))
`geom_smooth()` using method = 'loess' and formula 'y ~ x'
Warning: Removed 196 rows containing non-finite values (stat_smooth).
Warning: Removed 196 rows containing missing values (geom_point).

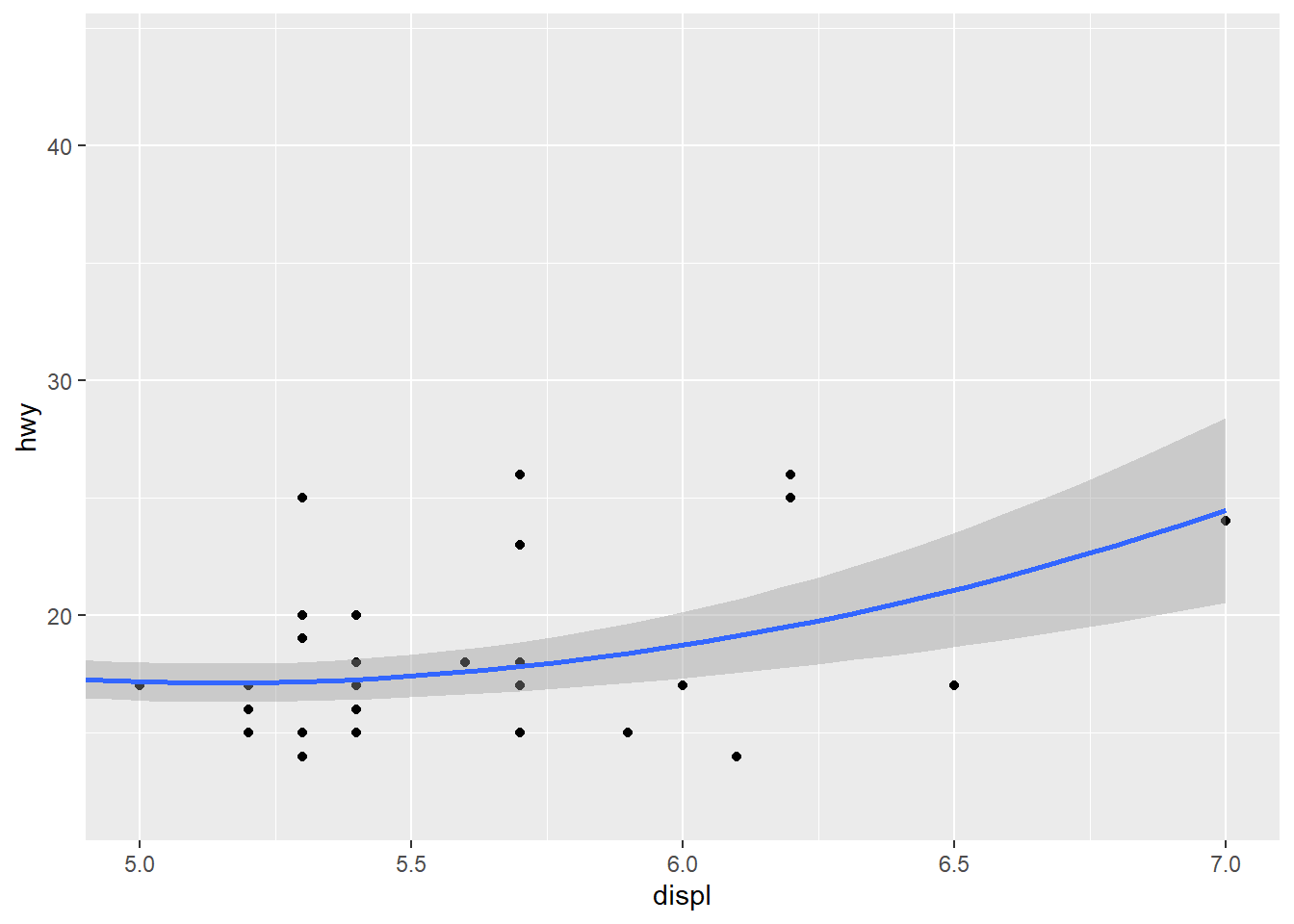

p0+coord_cartesian(xlim = c(5, 7))
`geom_smooth()` using method = 'loess' and formula 'y ~ x'

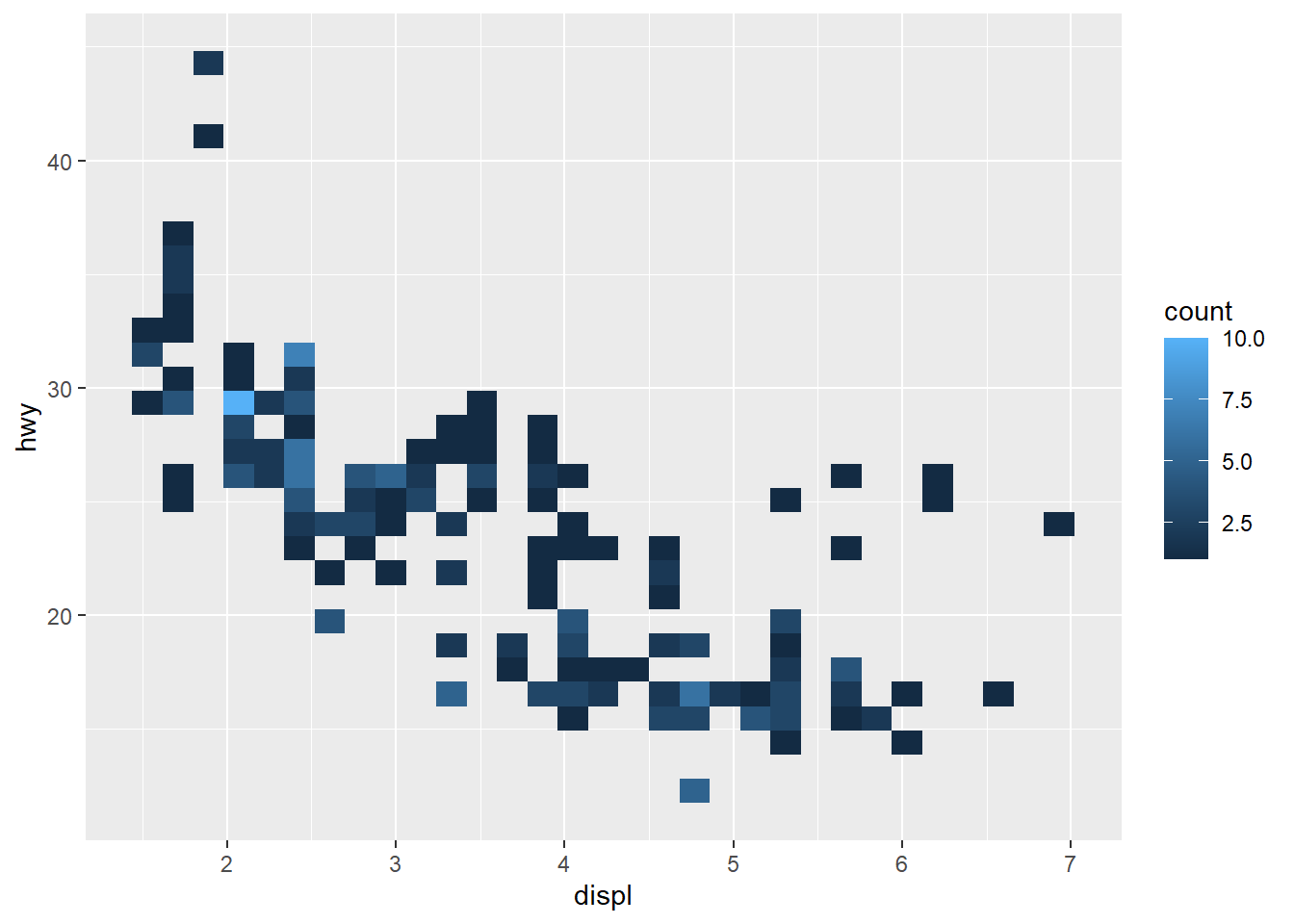

p1<-ggplot(mpg,aes(displ,hwy))+geom_bin2d(bins=30);p1

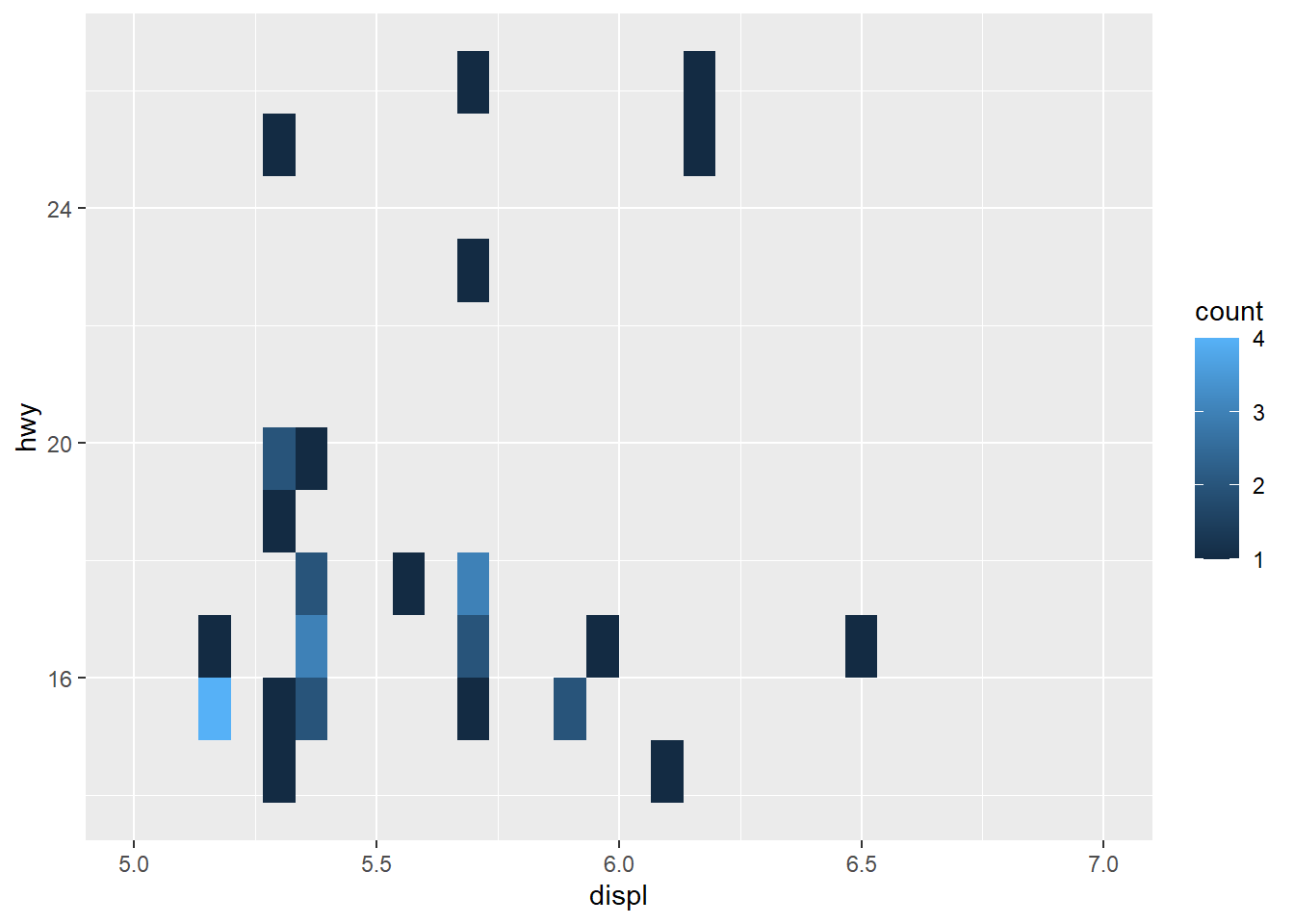

p1+scale_x_continuous(limits = c(5, 7))
Warning: Removed 196 rows containing non-finite values (stat_bin2d).

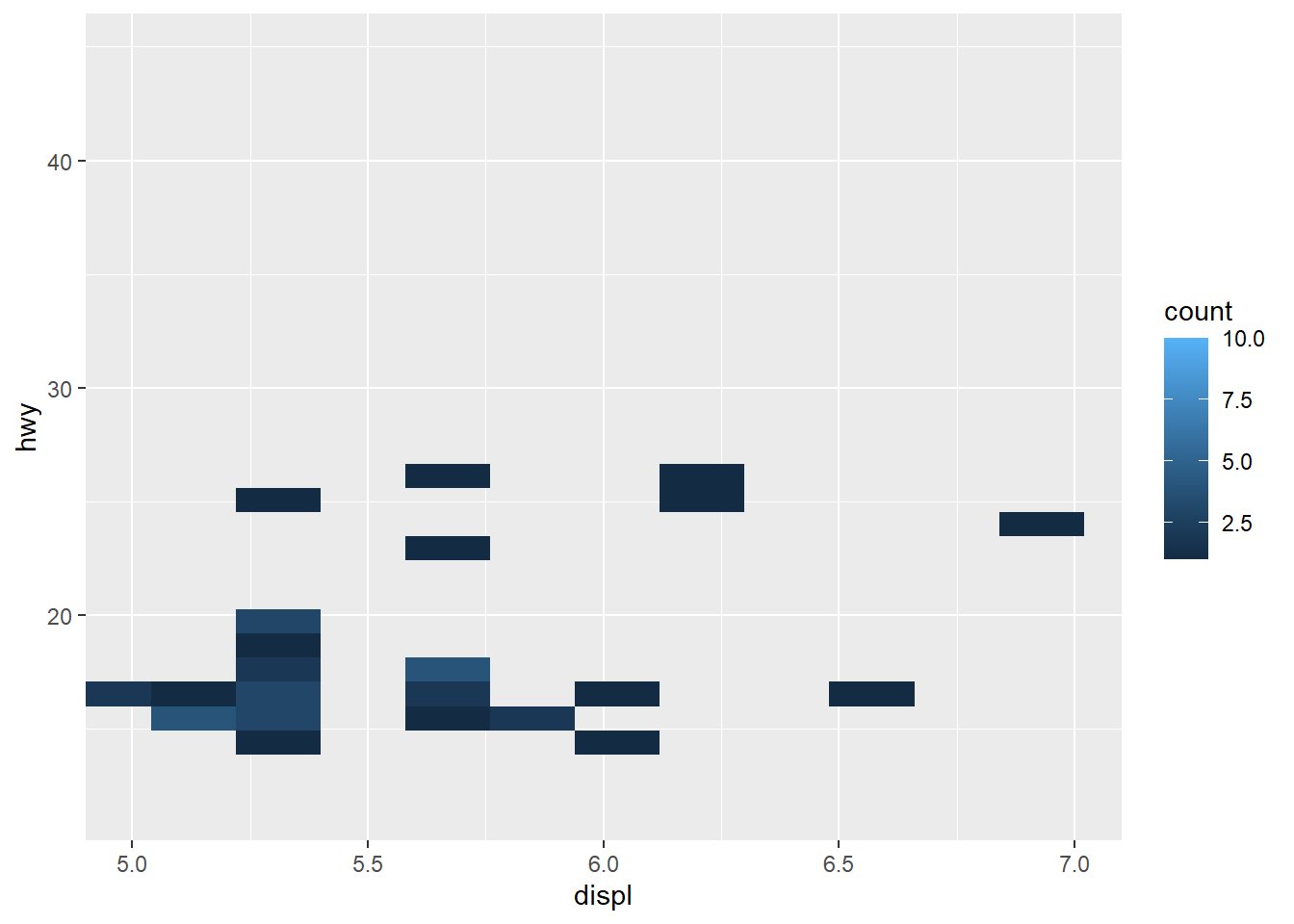

p1+coord_cartesian(xlim = c(5, 7))

13.2 coord_flip()

p<-ggplot(mtcars, aes(mpg, wt)) + geom_col();p

# 使用coord_flip()交换x/y轴#

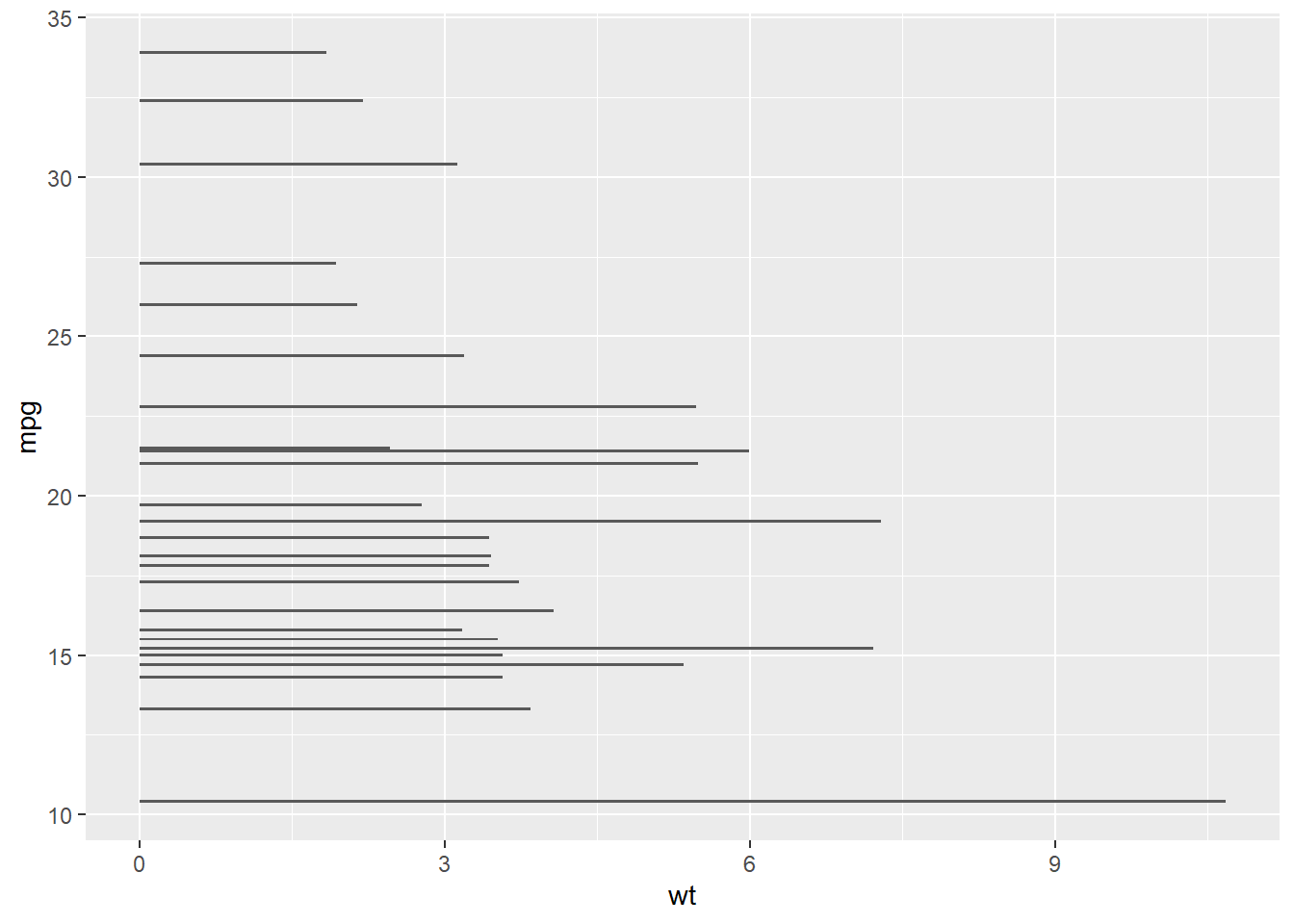

    p+coord_flip()

13.3 coord_fixed()

#坐标轴比例coord_fixed()#

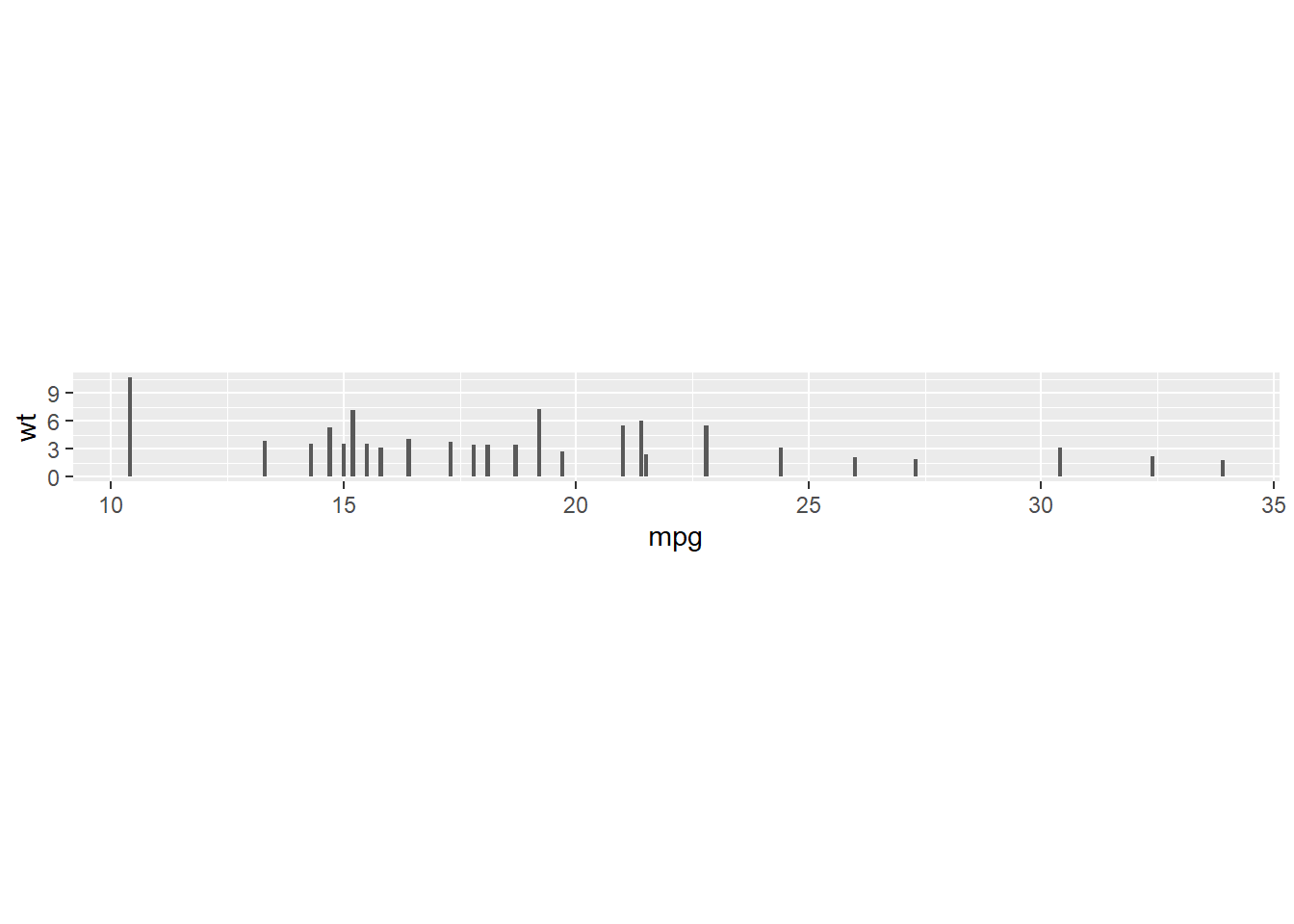

    p+coord_fixed(ratio=1/5)

13.4 coord_polar

#极坐标coord_polar(theta = "x/y")#

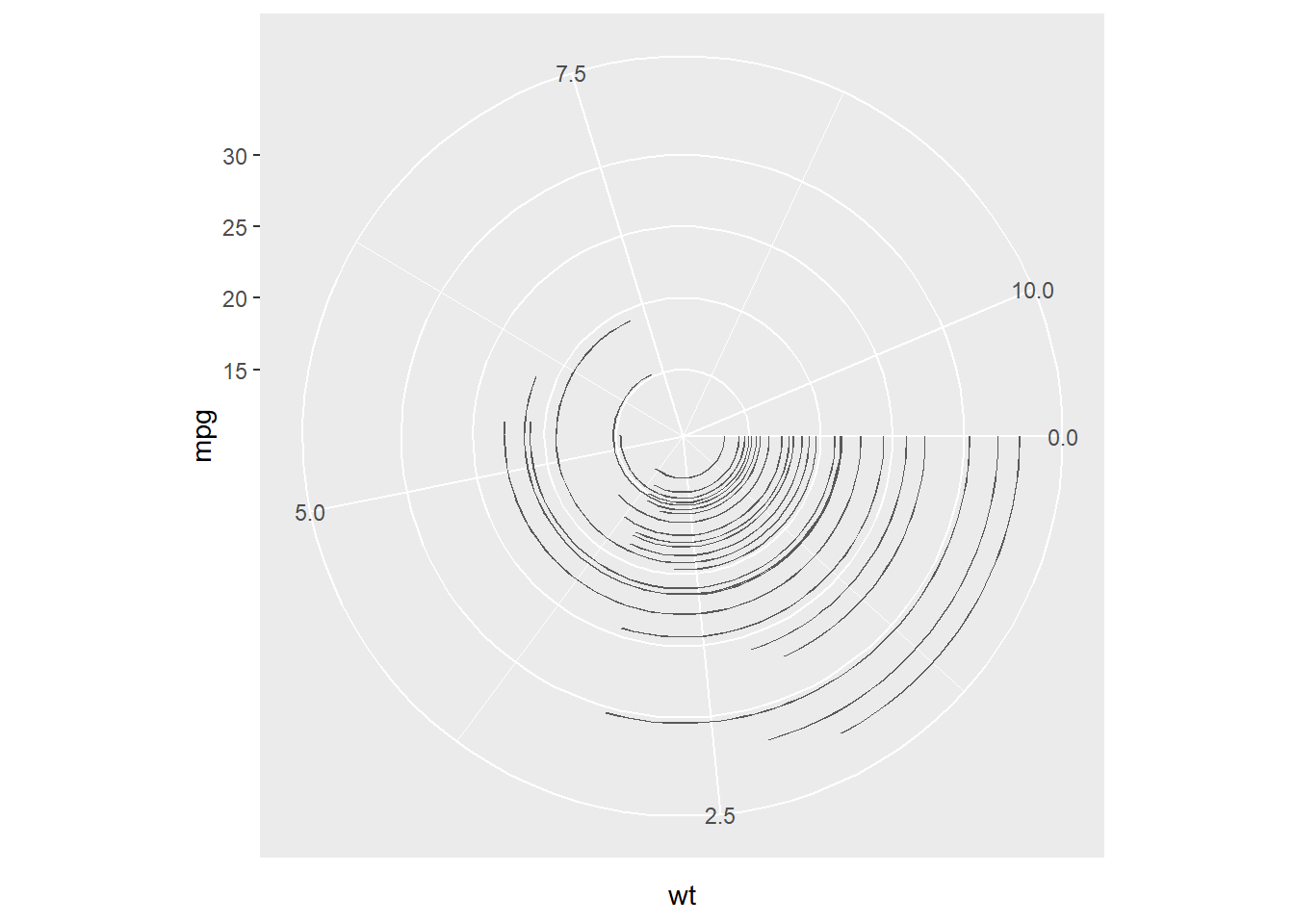

     p+coord_polar(theta = "y",start=pi/2,direction=1)

13.5 coord_trans()

d <- subset(diamonds, carat > 0.5)

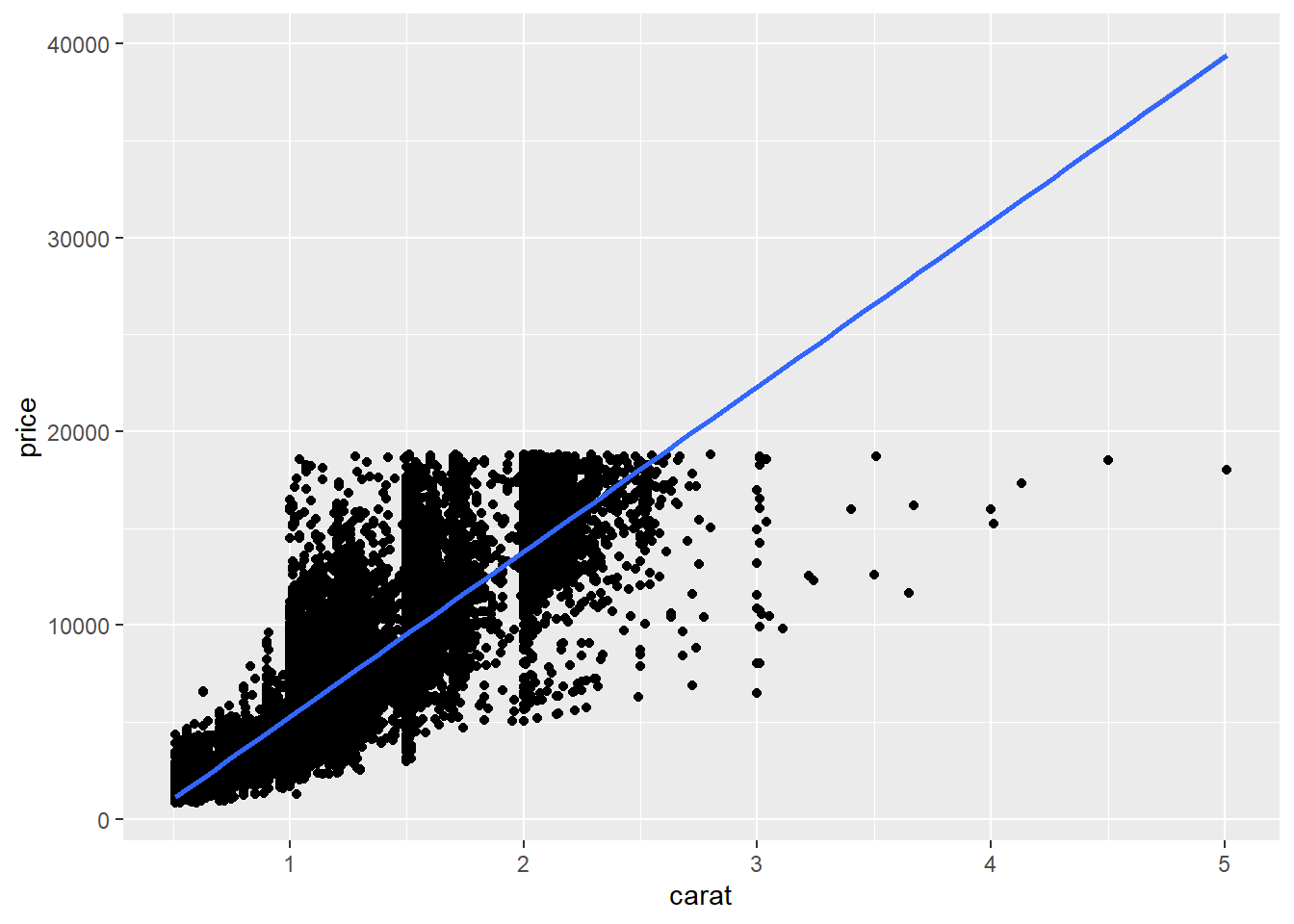

ggplot(d, aes(carat, price)) +  geom_point()+  geom_smooth(method = "lm")
`geom_smooth()` using formula 'y ~ x'

ggplot(d, aes(log10(carat), log10(price))) +  geom_point()+  geom_smooth(method = "lm")
`geom_smooth()` using formula 'y ~ x'

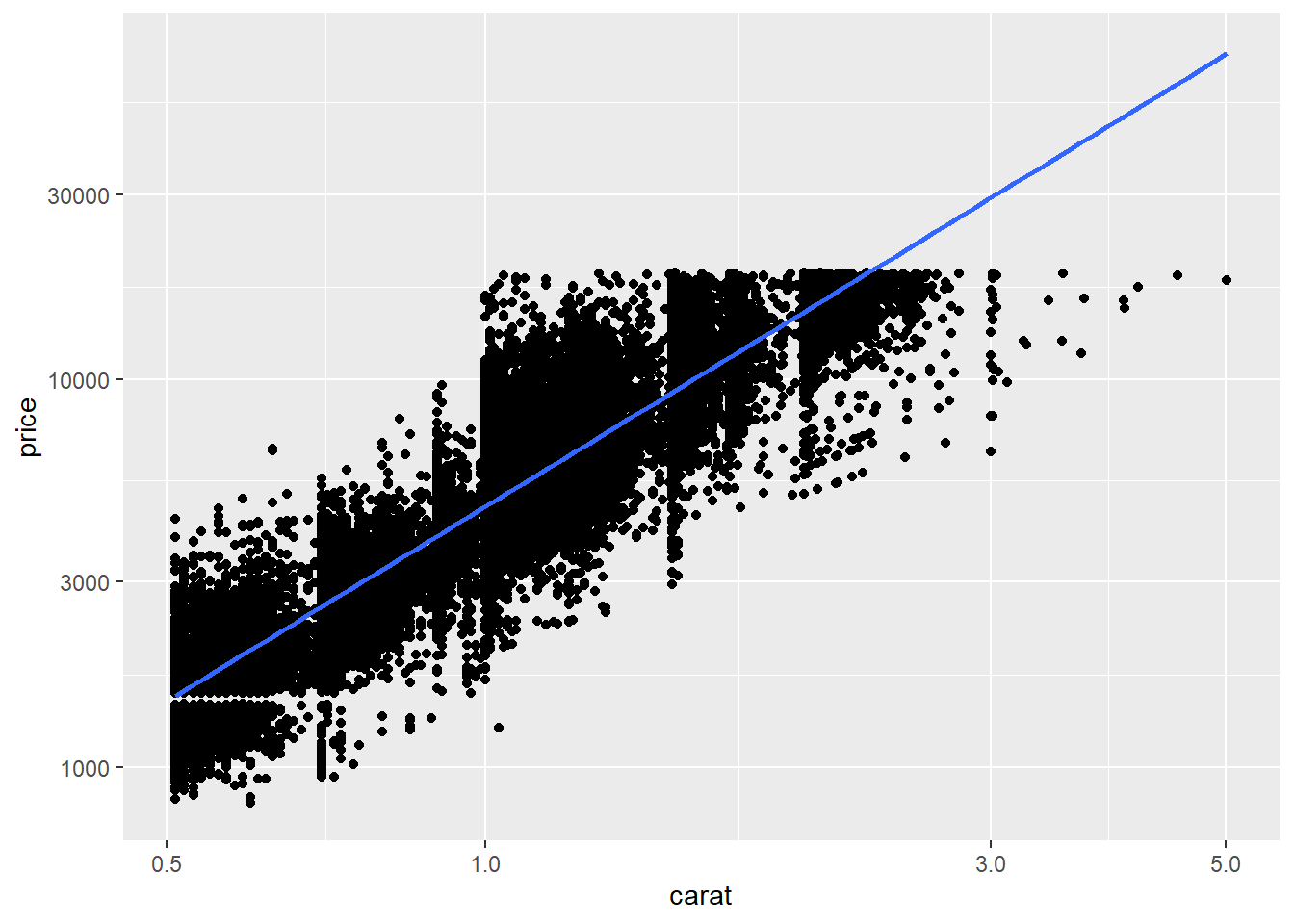

ggplot(d, aes(carat, price)) + geom_point() +  geom_smooth(method = "lm")+
  scale_x_log10()+scale_y_log10()
`geom_smooth()` using formula 'y ~ x'

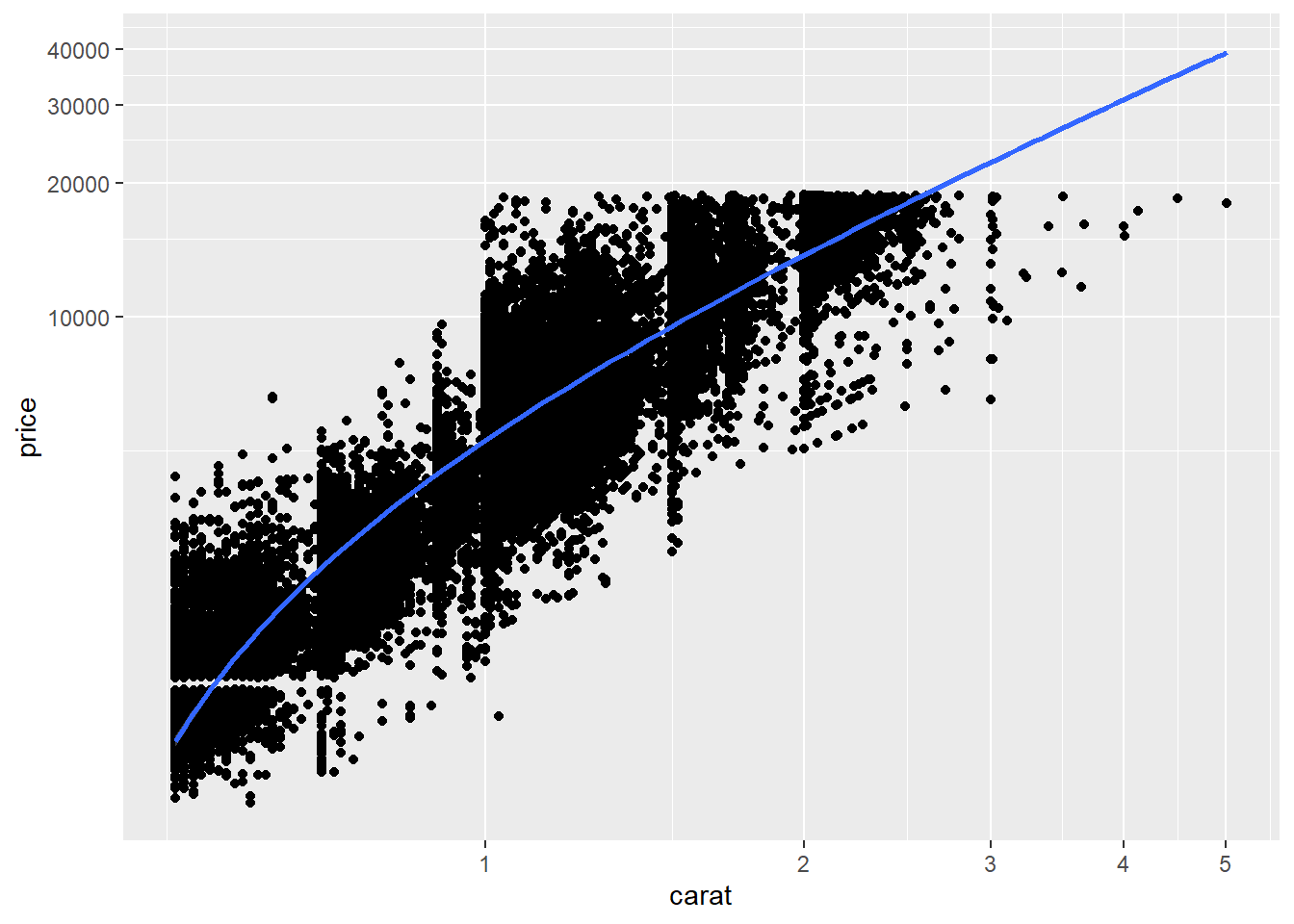

ggplot(d, aes(carat, price)) +  geom_point() +  geom_smooth(method = "lm")+
  coord_trans(x = "log10", y = "log10")
`geom_smooth()` using formula 'y ~ x'

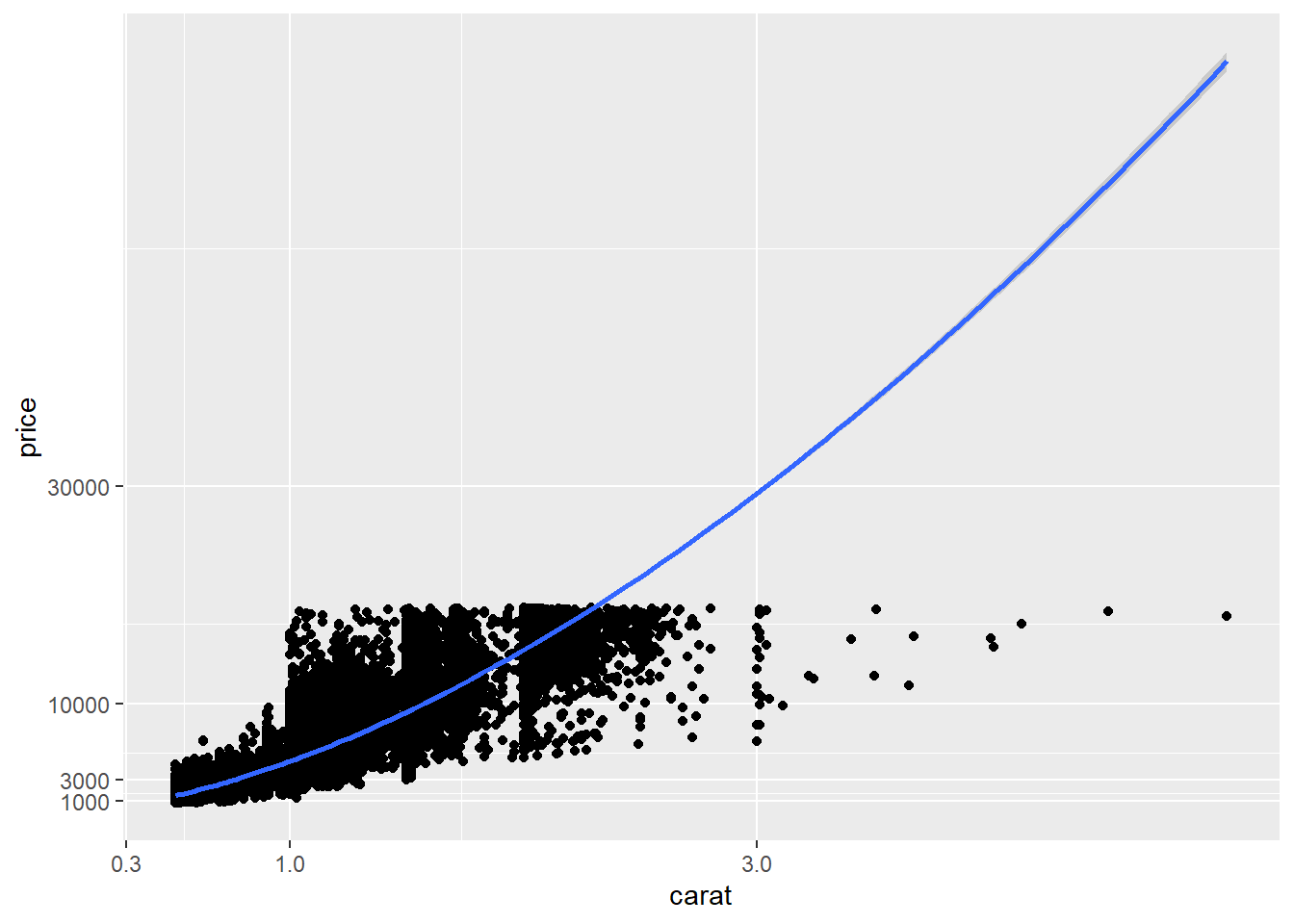

ggplot(d, aes(carat, price)) +  geom_point() +  geom_smooth(method = "lm") +
  scale_x_log10() +  scale_y_log10() +
  coord_trans(x = scales::exp_trans(10), y = scales::exp_trans(10))
`geom_smooth()` using formula 'y ~ x'
Warning in trans$inverse(continuous_range_coord): NaNs produced
Warning in self$trans$y$inverse(panel_params$y.range): NaNs produced

Warning in self$trans$y$inverse(panel_params$y.range): NaNs produced

Warning in self$trans$y$inverse(panel_params$y.range): NaNs produced
